This is a custom made cable manufactured to Kray Cables specifications. It is custom made but not home made! It is produced in a modern factory and all components are ROHS compliant.

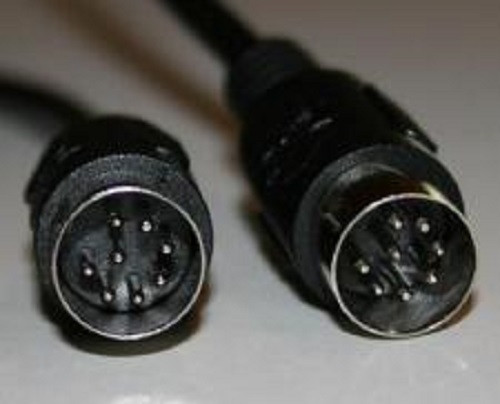

These are the Large (about 13 MM outside metal shell diameter) DIN cables. 15 ft total length.
Ends are both MALE molded to the cable with heavy strain relief to protect cable ends from wire damage.
Wire gauge 28AWG for 1-8 with a 26 AWG drain wire
Wire outside diameter 5mm
All pins are wired straight through 1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8 as well as a drain ground wire.
Foil wrapped cable bundle for EMI/RFI shielding.
270 degree type end.
