This is a custom made cable manufactured to Kray Cables specifications. It is custom made but not home made! It is produced in a modern factory and all components are ROHS compliant.

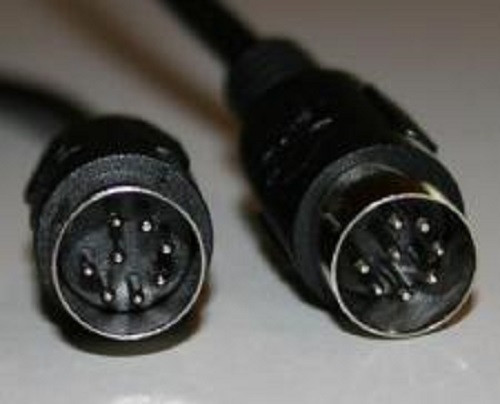

These are the Large (about 13 MM outside metal shell diameter) DIN cables. 6 ft total length.
Ends are both MALE molded to the cable with heavy strain relief to protect cable ends from wire damage.
Wire gauge 28AWG for 1-8 with a 26 AWG drain wire
Wire outside diameter 5mm
All pins are wired straight through 1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8 as well as a drain ground wire.
Foil wrapped cable bundle for EMI/RFI shielding.
