This is a custom made cable manufactured to Kray Cables specifications. It is custom made but not home made! It is produced in a modern professional cable factory and all components are ROHS compliant.
These are our heavy duty line of cables. 40% thicker overall. Double shielded for better resistance to EMI/RFI interference. (Electronic noise from other equipment, motors and switches)

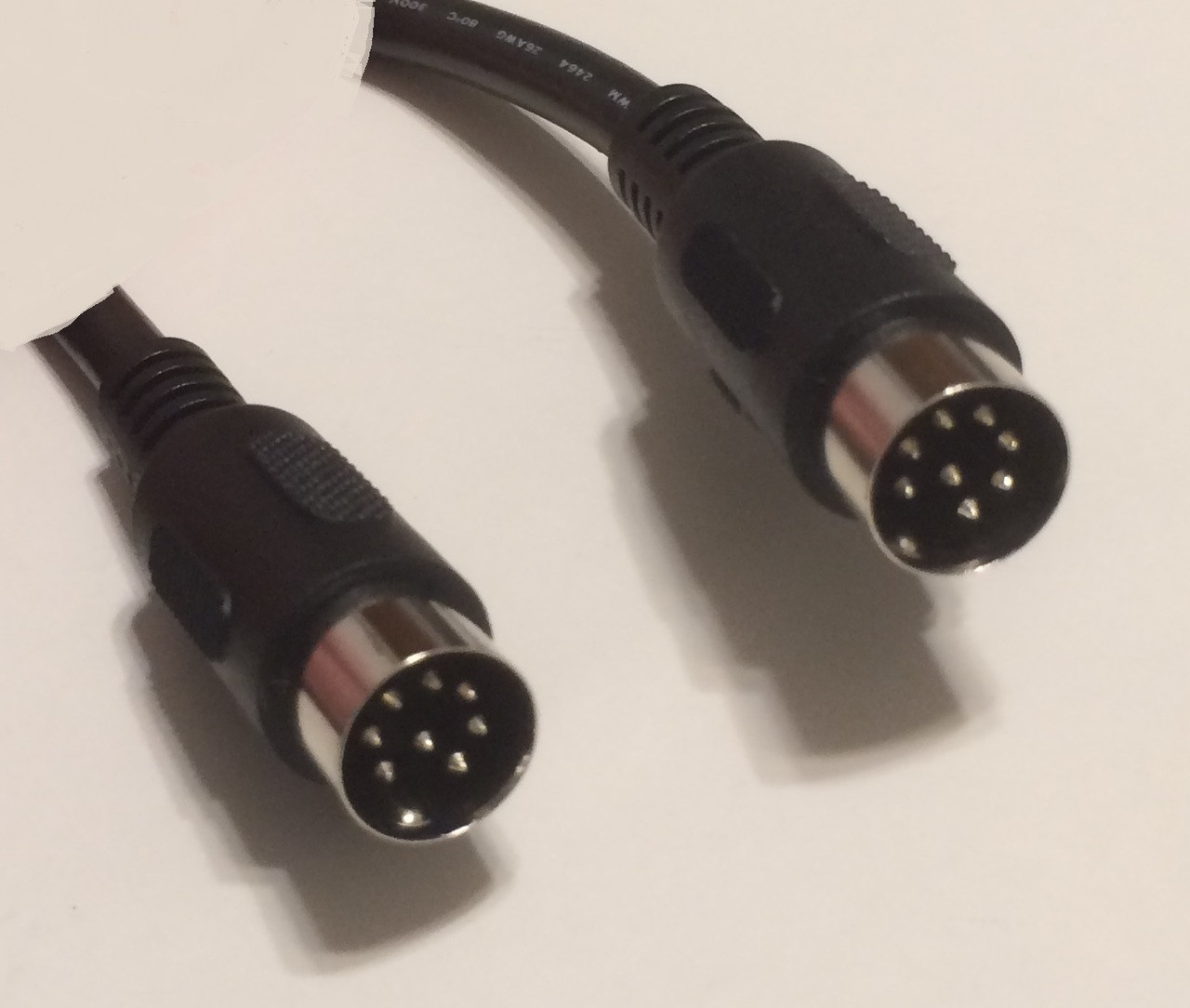

These are the Large (about 13 MM outside metal shell diameter) DIN cables. Not the 9 MM s-video size end (mini din)
Ends are both MALE molded to the cable with heavy strain relief to protect cable ends from wire damage.
Wire gauge 26AWG
Wire outside diameter 7mm
All pins are wired straight through 1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8 as well as a drain ground wire.
270 degree type end
Foil wrapped cable bundle AND copper mesh overwrap for EMI/RFI shielding.
25 ft total length.
